Swallowtail Codes

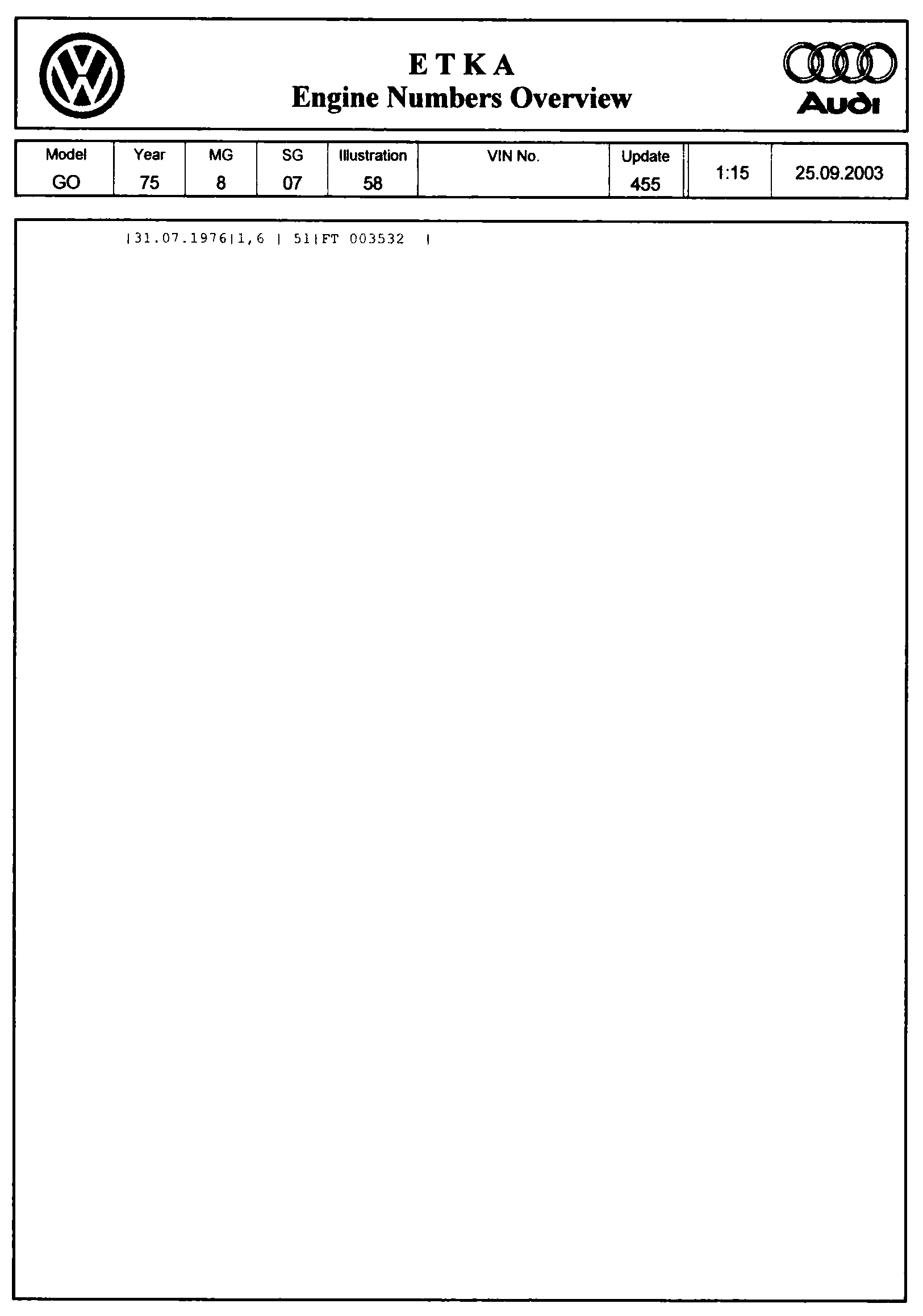

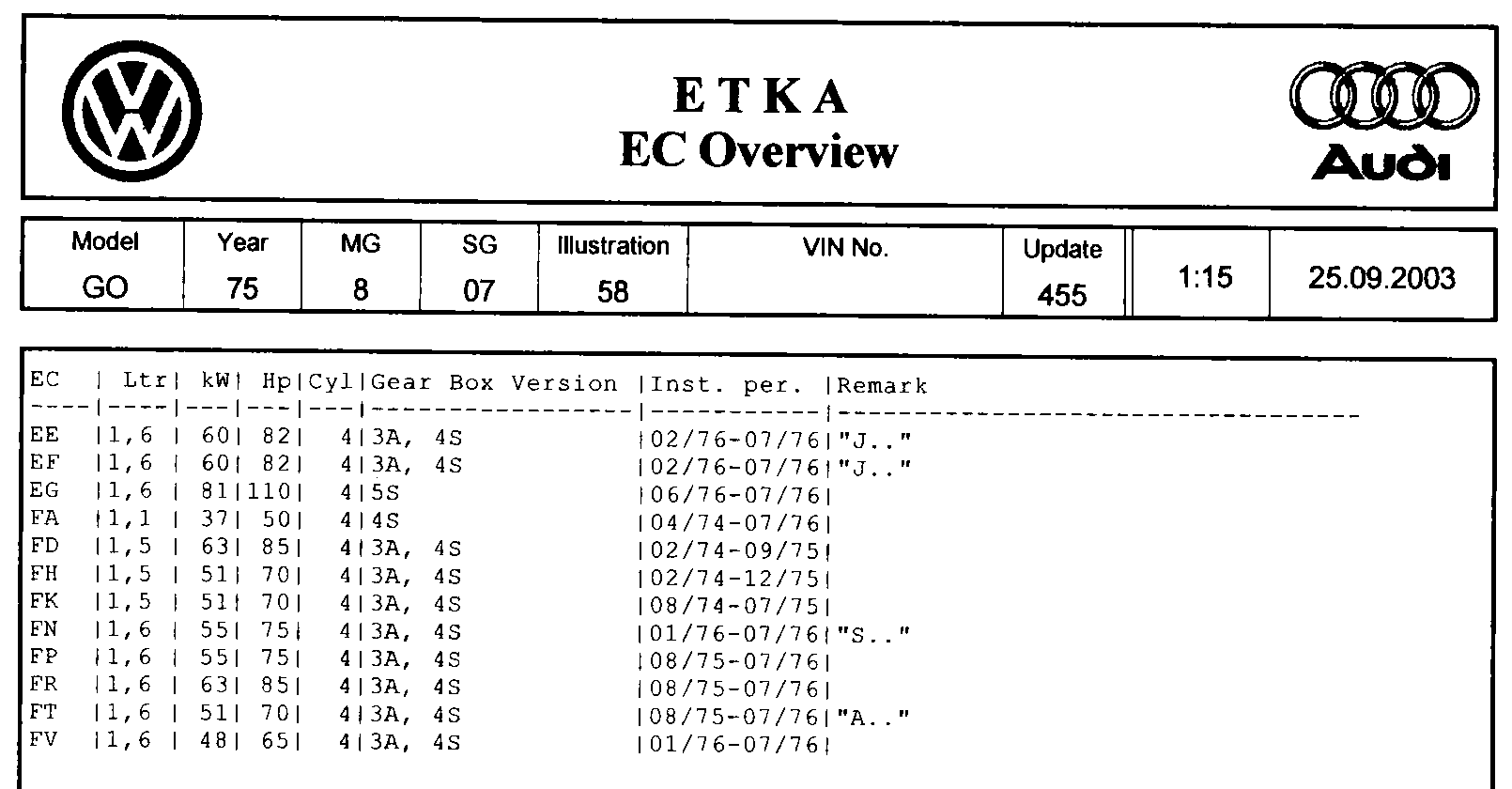

These first few are the ETKA sheets detailing the engine codes for early VW Rabbits. The first panel is an onverview, while the next three are a listing of all engine codes, broken down by month (and sometimes even days). COnsult these for VERY detailed information about your numbers matching Rabbit!

Click any of them for larger versions. Thanks to Neil for scanning and sending these in!

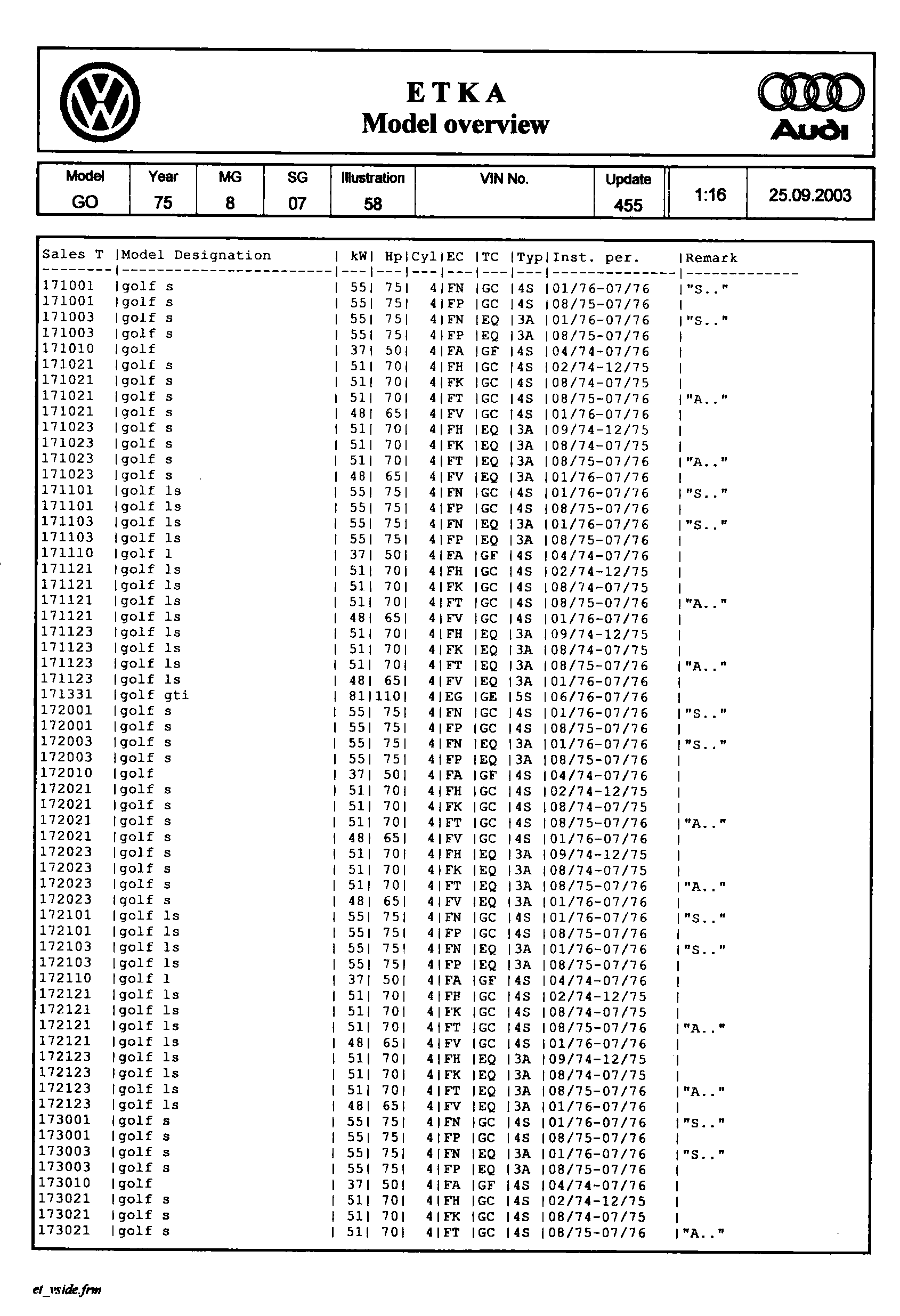

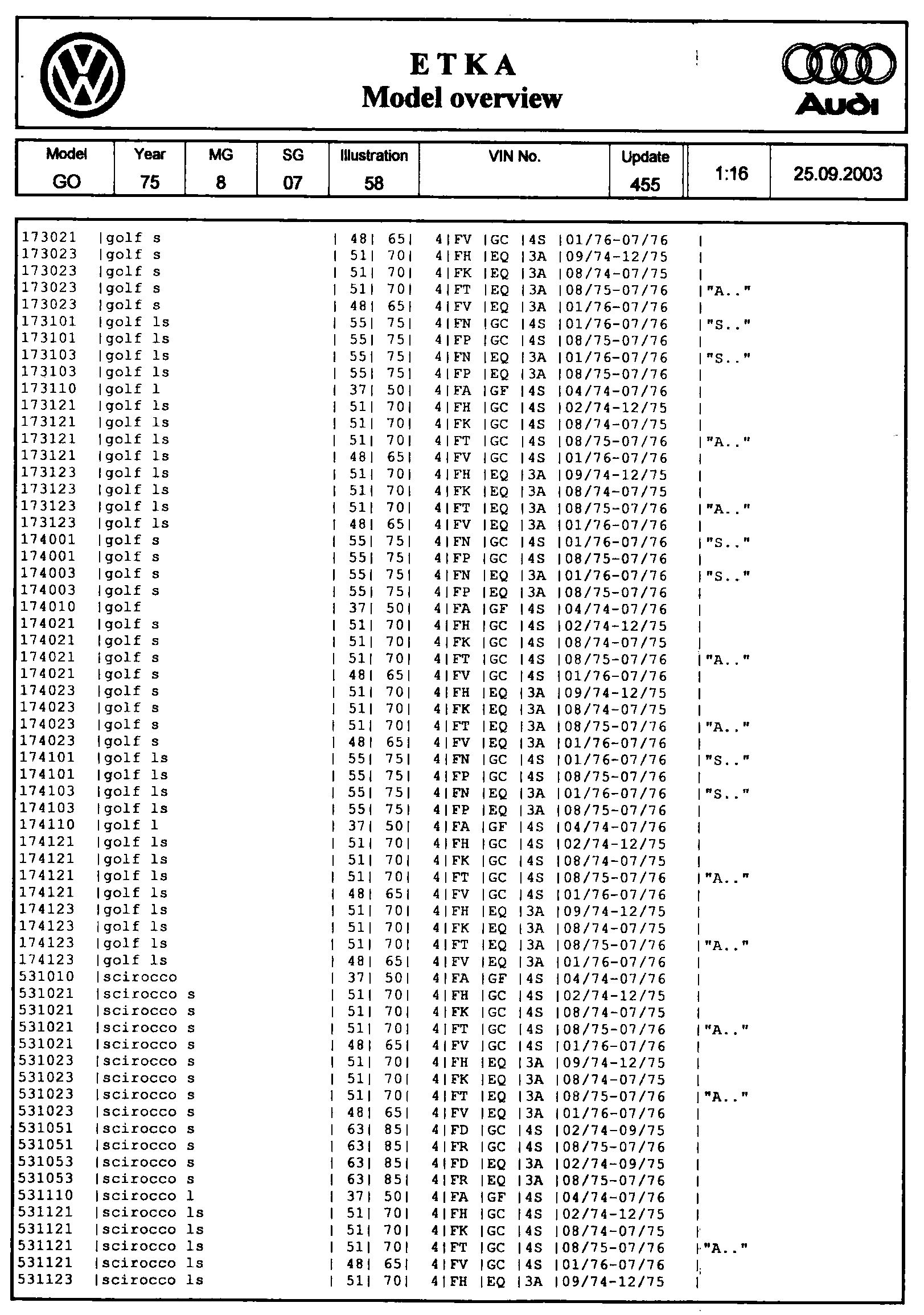

This next set is a model overview from the ETKA.

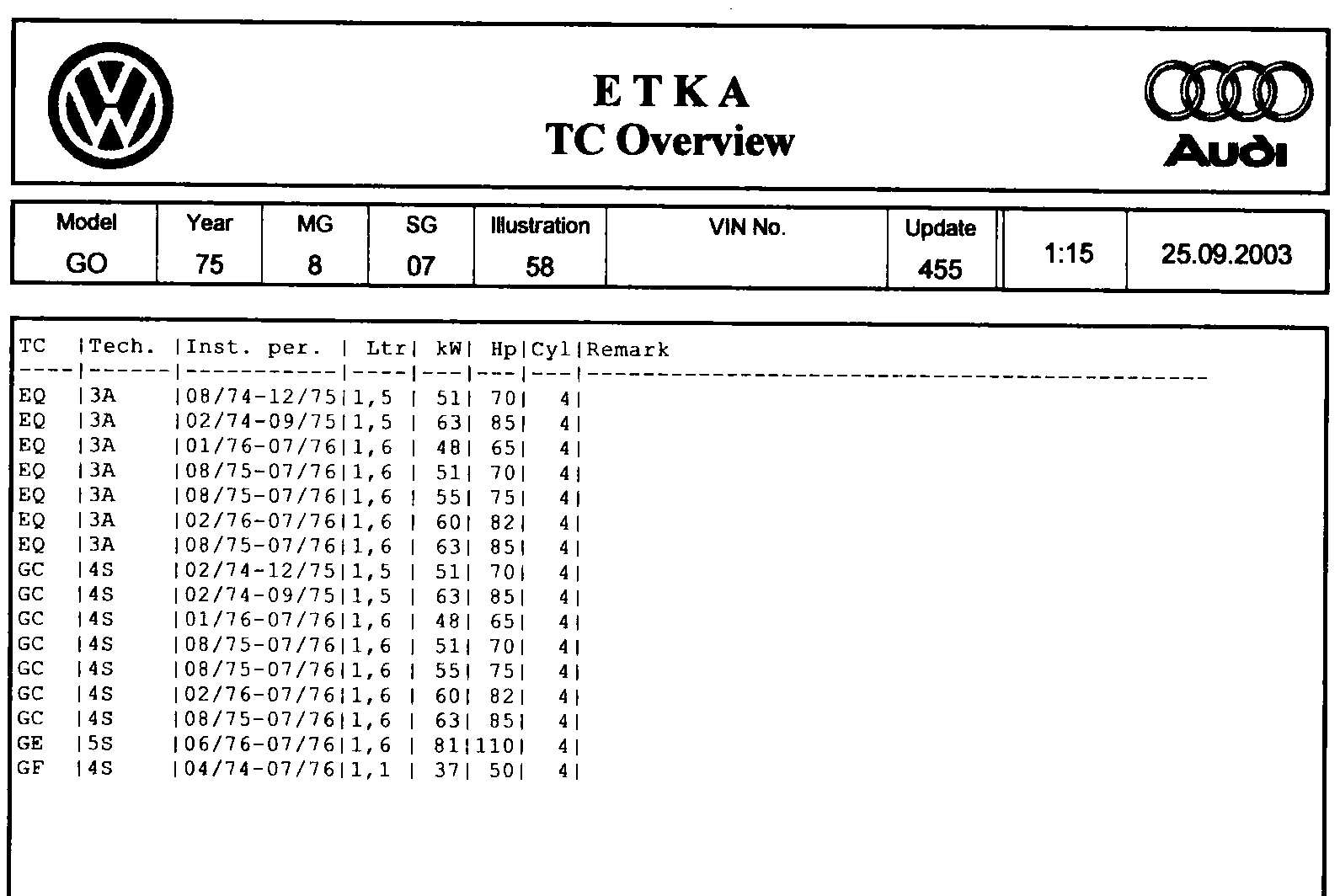

And finally a breakdown of transmission codes. Thanks Neil!

__________________________________________________________________________________________

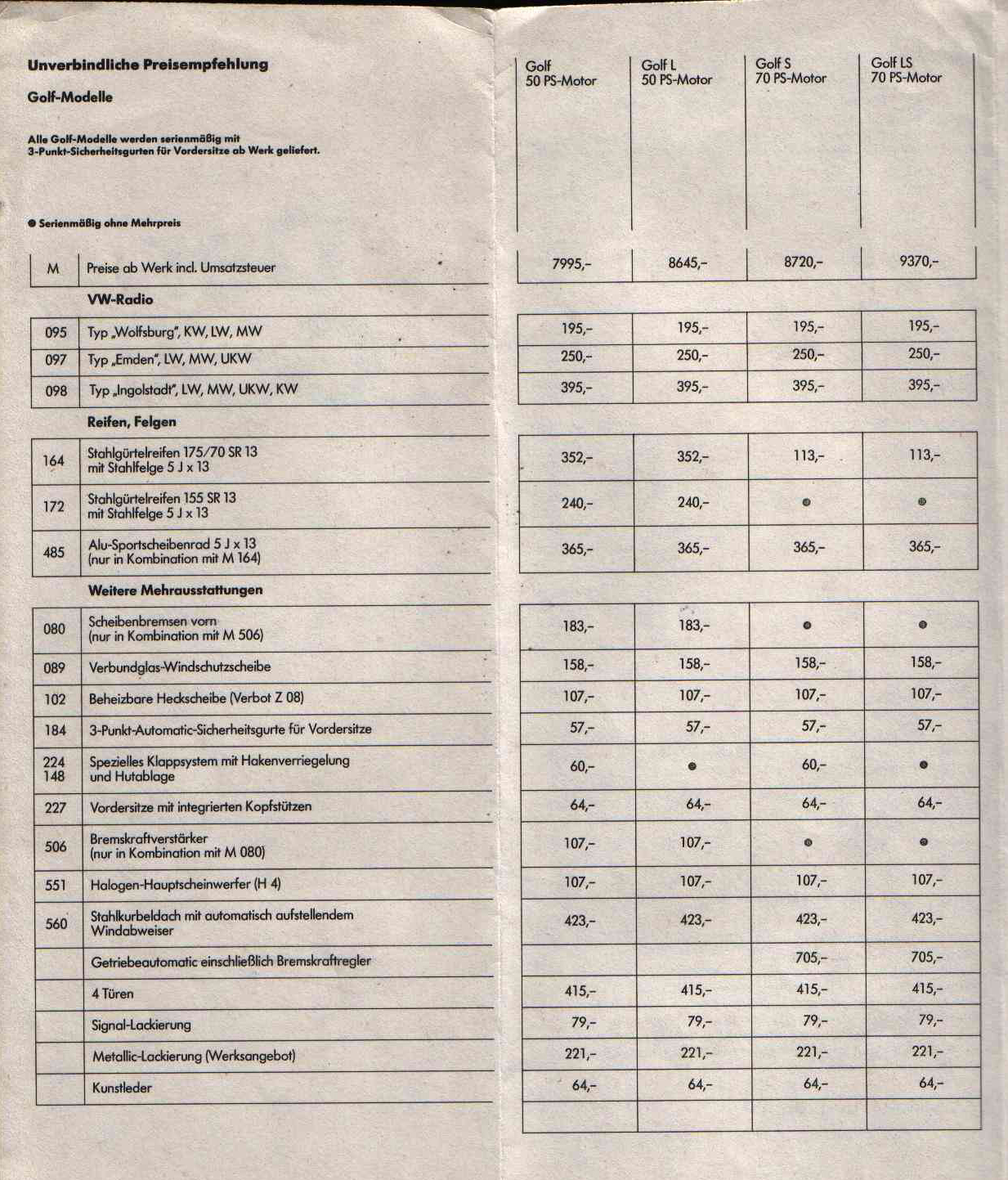

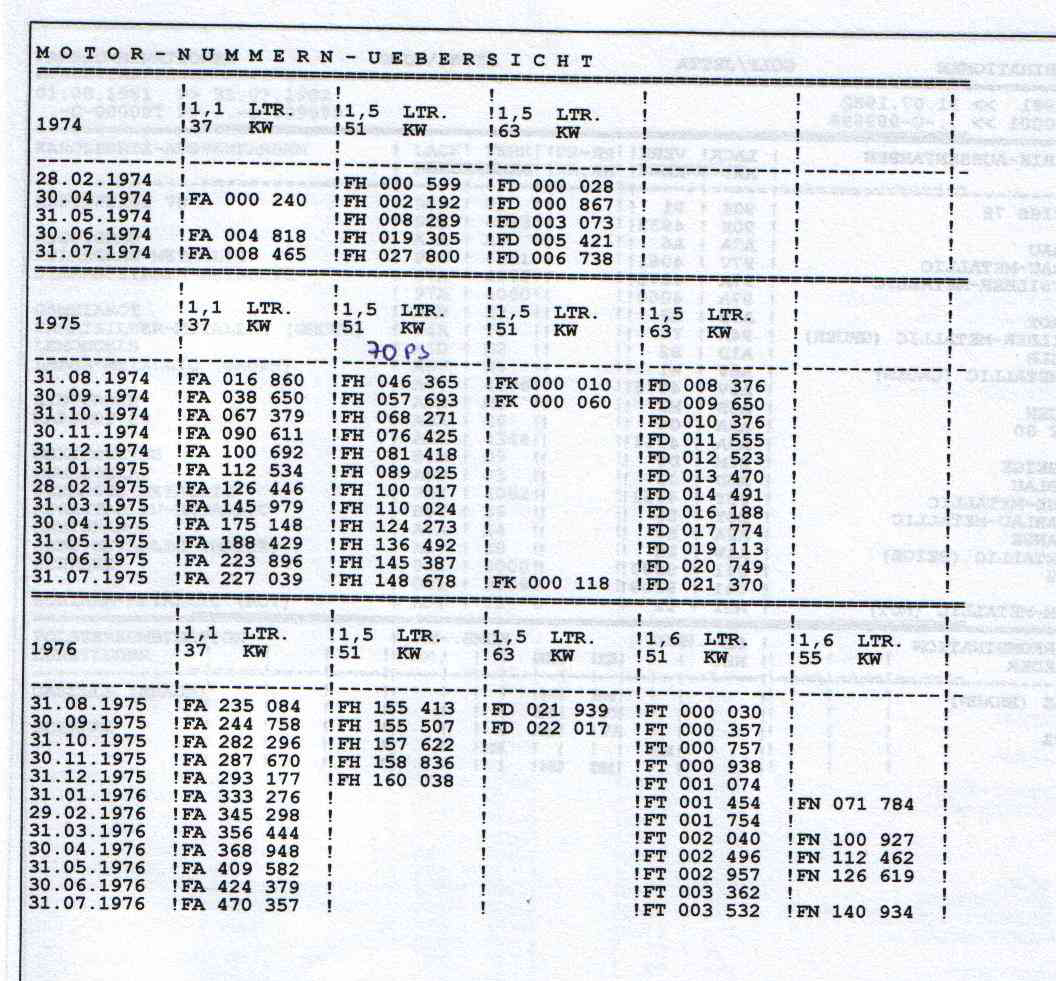

The following are the original German Engine code sheets as well as a German options brochure (along with option costs!). These were sent to me by Claus Von Essen.
